High-Traffic Server Configuration: CPU, RAM, NVMe, Tuning

When the Server Stops Keeping Up

Your site is growing — and that's good. Until the server can't keep up. One day traffic increases, pages start loading slower, CPU goes into the red zone, the database lags. That "powerful server" that had headroom just yesterday is now barely breathing.

Sound familiar? This isn't a disaster — it's a signal to review your configuration. Because it's not about "buying more expensive," it's about configuring correctly.

Over years of working with high-traffic projects, we've seen hundreds of cases where proper tuning delivered better results than hardware upgrades. A $50/month server with optimal configuration often outperforms a $200 server with default settings.

What Is High-Traffic?

There's no exact number. One site crashes at 2,000 concurrent users, another handles 50,000. It all depends on three factors:

• How many concurrent requests the server processes
• How your CMS or application behaves
• How much "heavy" content — images, scripts, database queries

For a blog, 10,000 visitors is nothing. For an online store with filters, inventory sync, and dynamic pricing — that's serious load. One request to a blog homepage is one SELECT from the database. One request to a Magento catalog with filters is dozens of queries, price recalculation, inventory checks.

This guide will help you understand server configuration for projects with serious traffic — from hardware selection to fine software tuning.

Processor: Not Just Cores

Many people only look at core count — and that's a mistake. In 2026, what matters most is single-thread performance. That's what determines how PHP, Python, or Node.js will behave under load.

PHP executes each request in a single thread. If you have 32 slow cores instead of 8 fast ones — PHP will process each individual request slower. Parallelism only helps when there are many concurrent requests, but each one still depends on single-core speed.

General recommendations:

• 4-8 cores — small business sites, blogs, lightweight CMS
• 12-16 cores — medium online stores, SaaS projects
• 24+ cores — containers, streaming, analytics, large databases

Sometimes a 16-core physical server performs better than a 32-core virtual one. The reason — virtualization overhead. Some performance is lost between virtualization layers. On VPS, you share physical resources with other clients, creating additional latency.

Threads are also important, but only if the software uses them. Node.js, Go, Nginx — yes. WordPress — unfortunately, no. Typical WordPress can't parallelize a single request across multiple threads — it just waits for the database to return results.

Memory and Caching

RAM is oxygen for the server. When there's not enough, the system starts writing temporary data to disk (swap), and the site "dies" from latency. Swap on NVMe is still hundreds of times slower than RAM.

RAM selection guidelines:

• 8 GB — small WordPress or corporate site
• 16-24 GB — online store, SaaS
• 32-64 GB — large databases, analytics, video

But even 64 GB won't save you without caching. Redis, Memcached, Varnish — that's what really offloads CPU and database. Without cache, every request goes to the database, PHP generates the page from scratch, the server does the same work thousands of times.

How Caching Works

Redis — stores database query results, user sessions, object cache. One Redis query takes microseconds, a MySQL query takes milliseconds. A 1000x difference.

FastCGI Cache — Nginx stores the ready HTML page and serves it without calling PHP at all. For anonymous users, this is the ideal solution.

OPcache — caches compiled PHP code. Without it, PHP recompiles every file on every request.

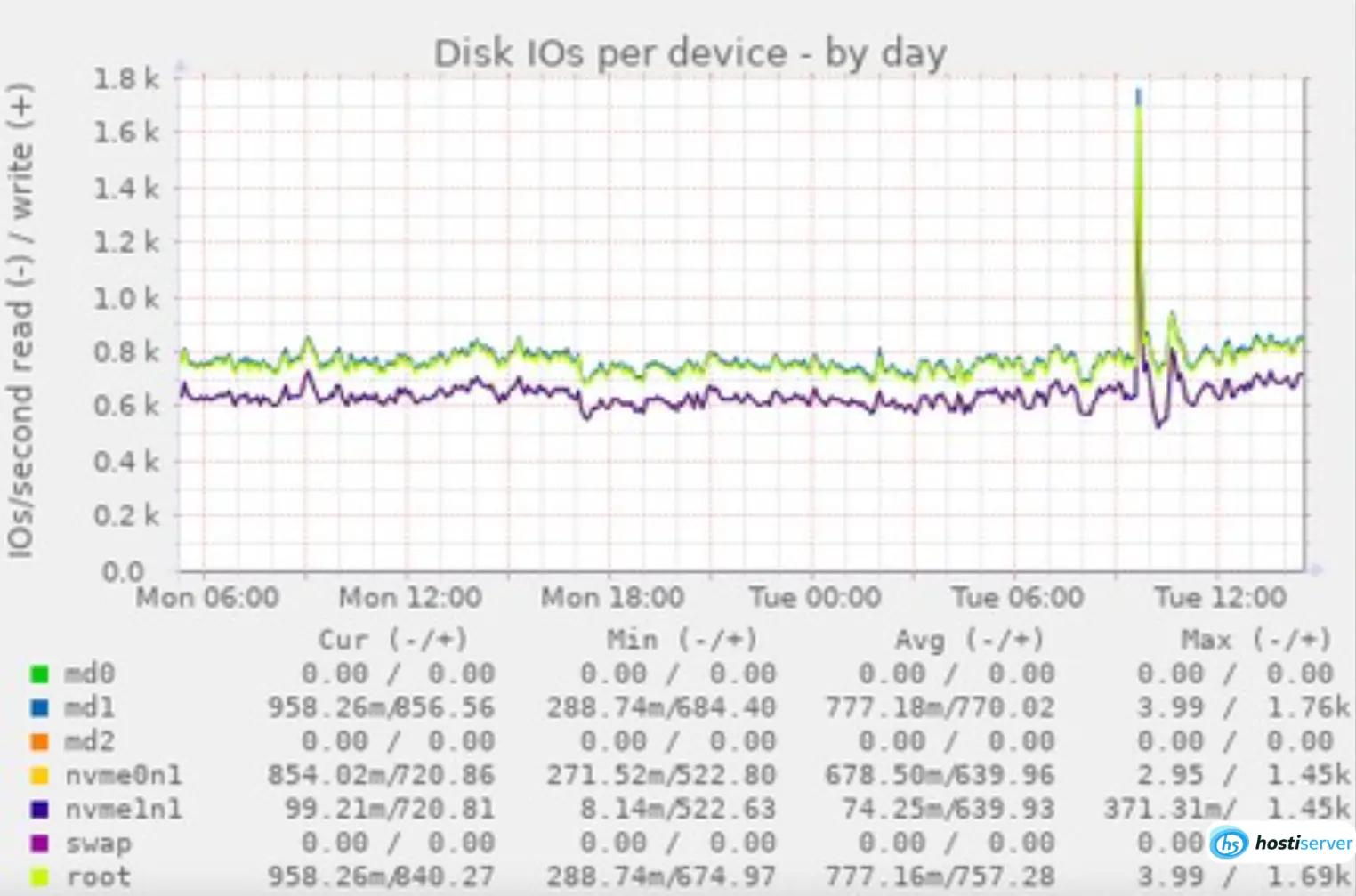

NVMe: Speed You Get Used To

Once you switch from SSD to NVMe — there's no going back. The difference isn't in percentages but in multiples — especially for databases and logs. A regular SATA SSD gives 500-600 MB/s sequential read and ~50,000 IOPS. NVMe — 3000-7000 MB/s and 500,000+ IOPS.

NVMe works directly through the PCIe bus, without SATA controller limitations. Result: lower latency, more I/O operations per second, more stable performance under load. For databases, this is critical — every query is a disk access.

RAID Configurations

Important: don't skimp on reliability.

• RAID-1 (mirror) — minimum for production. Two disks with identical data. One fails — you run on the second
• RAID-10 — for maximum performance and reliability. Combination of mirror and stripe
• RAID-0 — fast, but if one disk fails you lose EVERYTHING. Only for temporary data

In one project, migrating an eCommerce site from SSD array to NVMe RAID-1 reduced average page load time from 1.9 to 1.2 seconds. The difference is especially noticeable on catalog pages with filters — lots of random database reads there.

Network: The Bottleneck Everyone Forgets

Sometimes everything seems fine — CPU is normal, RAM is sufficient, cache is configured — but the site still lags. The reason is simple: narrow bandwidth. This is especially noticeable with many concurrent connections or large file transfers.

100 Mbit/s in 2026 is office-level, not production. At 100 Mbit/s you can deliver maximum ~12 MB/s. If an average page weighs 2 MB (with images), you can only serve 6 users at full speed simultaneously.

For stable operation you need:

• Minimum 1 Gbit/s port — standard for any serious project
• HTTP/3 (QUIC) support — faster connection establishment, better mobile network performance
• CDN connection for global audience — static is served by the server closest to the user

CDN can take on 60-80% of the load if your audience is geographically distributed. Images, CSS, JavaScript, video — all cached on edge servers worldwide. The main server handles only dynamic content.

Hostiserver combines CDN with NVMe configurations — this removes bottlenecks without complex solutions. Setup takes a few minutes through the control panel.

Tuning: The Difference Between "Works" and "Flies"

Even the most expensive hardware can lag due to poor configuration. Typical situation: bought a powerful server, installed CMS, left default MySQL and PHP-FPM settings — and wonder why it's slow. Defaults are designed for minimal resource consumption, not performance.

PHP-FPM (example for 16 GB RAM)

We use dynamic mode (pm = dynamic) for mixed workloads or static for high-load projects with predictable traffic:

[www]
pm = dynamic
pm.max_children = 150
; Formula: (Free RAM) / (PHP process size ~60-100MB)
; For 16GB server with 12GB free RAM: 12000/80 ≈ 150
pm.start_servers = 20
pm.min_spare_servers = 10
pm.max_spare_servers = 30
; Restart workers to avoid memory leaks
pm.max_requests = 1000
; Timeout for long scripts (import, report generation)
request_terminate_timeout = 300

Why pm.max_requests is important: PHP processes can "leak" — gradually consuming more memory due to poorly written plugins or extensions. Without limits, they eat all RAM in a few hours. With pm.max_requests = 1000 each worker restarts after 1000 processed requests.

MySQL / MariaDB

[mysqld]
# Main parameter — 50-70% of total RAM
# For 16GB server where MySQL is the only heavy process
innodb_buffer_pool_size = 10G
# 25% of buffer pool to speed up writes
innodb_log_file_size = 2G
# Depends on PHP process count
# Each PHP worker can hold 1-2 connections
max_connections = 500
# Slow query logging — MANDATORY
slow_query_log = 1
slow_query_log_file = /var/log/mysql/slow.log
long_query_time = 1

About slow_query_log: this is your main diagnostic tool. All queries longer than long_query_time seconds go into the log. Then analyze them with mysqldumpslow or pt-query-digest and optimize the slowest ones.

Nginx

worker_processes auto;  # One per CPU core
worker_connections 4096; # Max connections per worker
# Avoid writing large PHP responses to files
fastcgi_buffers 16 16k;
fastcgi_buffer_size 32k;
# Gzip for bandwidth savings
gzip on;
gzip_comp_level 5;
gzip_min_length 256;
gzip_types text/plain text/css application/json
           application/javascript text/xml
           application/xml image/svg+xml;
# Brotli is even more efficient (if module installed)
# brotli on;
# brotli_comp_level 6;

These "small things" can double throughput without hardware upgrades. One client after properly configuring these parameters saw an increase from 40 to 95 RPS on the same server.

Monitoring: How to Know When the Server Can't Handle It

Signs of Problems

• CPU > 80% for 5+ minutes — Warning
• CPU > 95% — Critical, immediate action needed
• RAM > 90% (excluding cache) — server starts swapping
• Disk Space < 10% — most common cause of database crashes
• HTTP 5xx > 1% of traffic — something is seriously wrong

Steal Time (%st) — The Hidden VPS Enemy

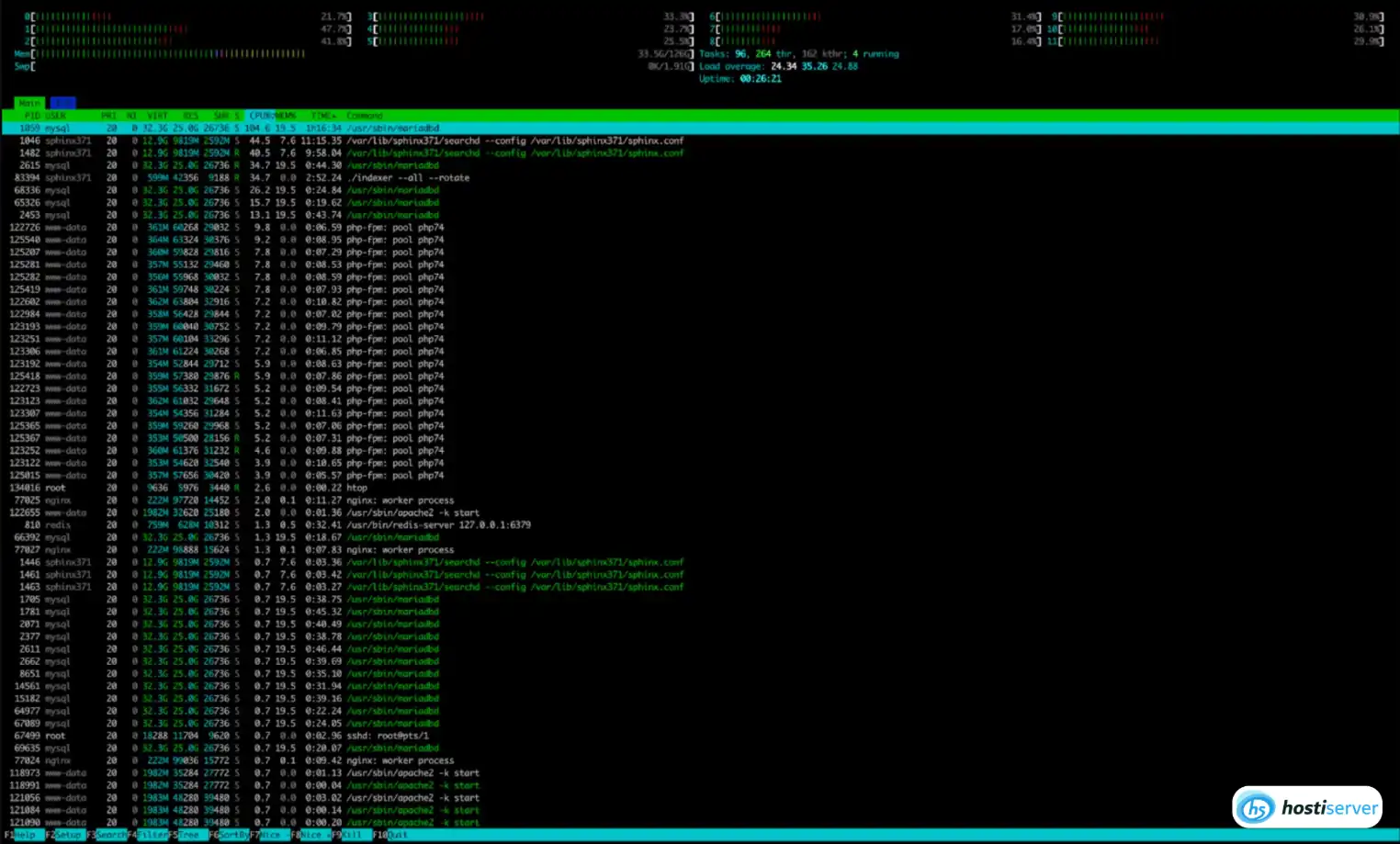

If you see Steal Time > 1-2% in htop or top — cloud neighbors are taking your CPU resources. This is a sign it's time to move to Dedicated.

Most Important Metrics for High-Traffic

1. Average Response Time (Latency) — if hardware is fine but Latency grows — problem is in code or database locks
2. Error Rate — percentage of 4xx/5xx errors
3. TTFB (Time to First Byte) — time to first response byte

Rule: if any of these indicators is in the red zone for more than 5 minutes — it's no longer a "peak moment" but a systemic problem.

Load Testing

Before launching ads or expecting seasonal peaks — test your server. Better to discover problems in a test than during a sale. Load testing shows your server's real limit — how many concurrent users it can handle before it starts lagging.

Testing Tools

k6 (recommended) — the most modern tool. JavaScript scenarios, excellent reports, easy CI/CD integration. You can describe realistic user behavior: visited homepage, went to catalog, added item to cart.

# Installation
sudo apt install k6
# Simple test with 100 virtual users for 30 seconds
k6 run --vus 100 --duration 30s script.js

wrk — for checking pure throughput. Fastest of all, but no complex scenarios:

# 12 threads, 400 connections, 30 seconds
wrk -t12 -c400 -d30s https://example.com/

Locust — if you need complex user behavior scenarios. Written in Python, has web interface for real-time test monitoring.

Apache Benchmark (ab) — the simplest option, already installed on most servers:

# 1000 requests, 100 concurrent
ab -n 1000 -c 100 https://example.com/

What's Considered Normal Results

If your results are significantly lower — there's room for optimization. Pay attention not just to RPS, but to percentile latency: p95 and p99 show response time for 95% and 99% of requests. If average time is 200ms but p99 is 5 seconds, some users are getting very slow responses.

Scaling: When Upgrades Don't Help

Sooner or later, the server hits a ceiling. Even powerful hardware won't save you if the architecture isn't separated. There are two paths: vertical scaling (more resources on one server) and horizontal (more servers).

When to Move from VPS to Dedicated

VPS is a virtual machine on a shared physical server. You share resources with other clients. Dedicated — the entire physical server is yours. When VPS isn't enough:

• Traffic: consistently over 100-150 RPS or 50,000+ unique visitors per day
• Steal Time (%st): in top/htop shows > 1-2% — neighbors are taking your CPU resources
• I/O Wait: high disk subsystem latency due to shared storage
• Unstable TTFB: response time "floats" without visible reasons in your code

Steal Time (%st) — the main indicator. If you see more than 1-2% consistently — cloud neighbors are taking your resources. On Dedicated, this problem doesn't exist.

Horizontal Scaling

When CPU stays above 70% and pages are still slow — time to separate architecture:

• Database on separate server — most commonly the first thing to move out. MySQL/PostgreSQL gets dedicated resources, doesn't compete with PHP for CPU
• Static on CDN — images, CSS, JS served by CDN, main server handles only dynamics
• Redis on separate server — for large cache volumes
• Load balancer — distributes traffic between multiple web servers

This is more complex to set up and maintain, but provides stability and ability to scale further. All large projects go through this stage — otherwise they get stuck at single server limits.

Common Mistakes

Configuration Examples That Work

These are real production configurations that have survived traffic peaks without crashes.
